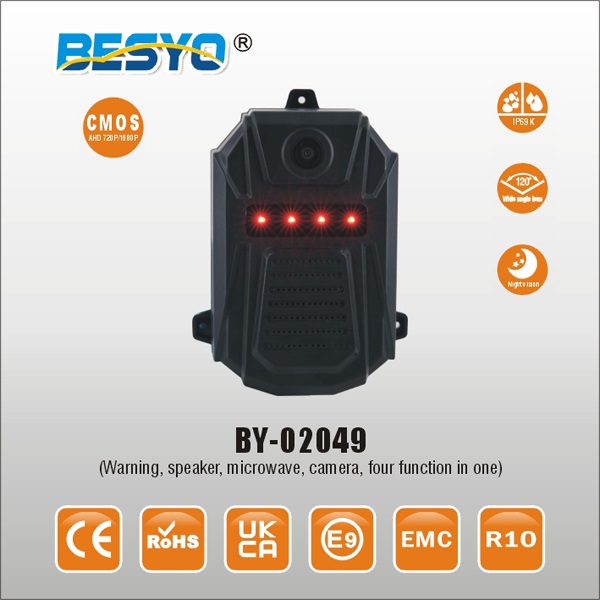

Millimeter Microwave Radar Camera, warning, speaker, microwave, camera, four function in one

BY-02049

Millimeter Microwave Radar Camera:
AHD1080P Camera:
Image sensor: 1/2.7 "CMOS
Video format: NTSC, PAL
Resolution: 1920 x 1080
Frame count: 25/30fps

Radar:
Frequency band: 9.9~10.5GHz
Range resolution: 0.01m
Ranging accuracy: better than 0.1m
Detection distance: 3m
Horizontal Angle: 120°
Vertical Angle: 70°

Description

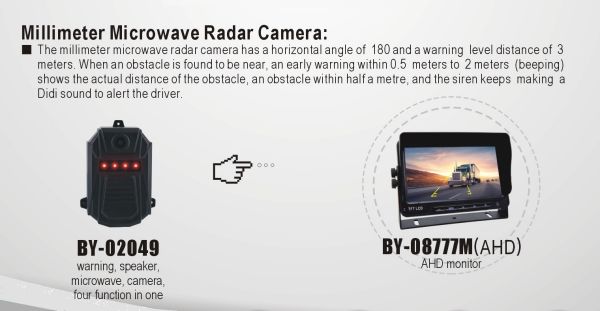

Millimeter Microwave Radar Camera:
AHD1080P Camera:
Image sensor: 1/2.7 "CMOS
Video format: NTSC, PAL
Resolution: 1920 x 1080
Frame count: 25/30fps
Video output signal: AHD
Exposure: Auto
Gain: Auto
White Balance: Auto
Low illumination: 0.5 Lux
Rated operating voltage: 5VDC
Rated working current: 150mA +/-10mA
Image quality assurance temperature: -30℃~ 75℃
Optimum operating temperature: -20℃~65℃
Storage temperature: -30℃~75℃
Ambient humidity: 90%RH

Noise reduction method: 3D noise reduction

Radar:
Frequency band: 9.9~10.5GHz
Range resolution: 0.01m
Ranging accuracy: better than 0.1m
Detection distance: 3m
Horizontal Angle: 120°
Vertical Angle: 70°
Appearance size: 17cm*8.5cm
Weight: 200g
Interface definition: Standard car camera aviation head definition interface
Horn power: 5w
Flashing power: 4 0.25W red leds
Strong magnetic suction cup parameter: 16KG downward pull

Language :

BY-02049
